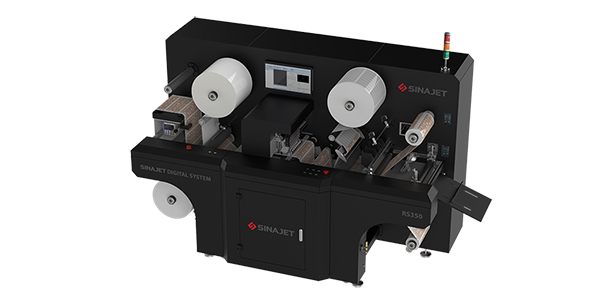

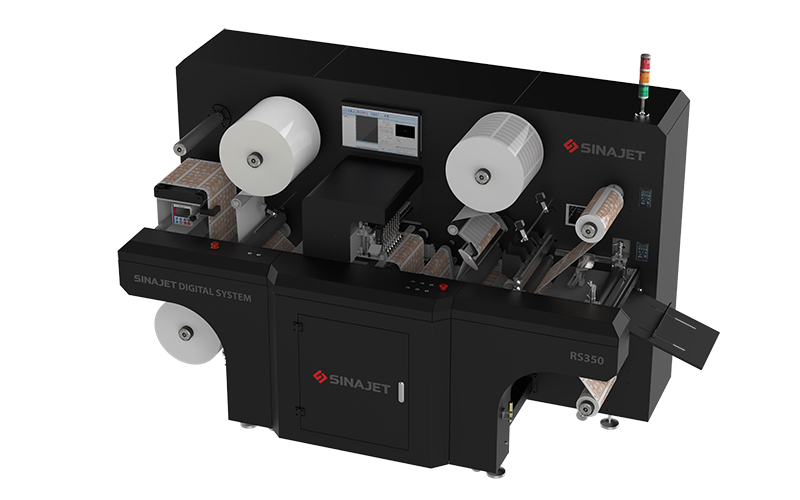

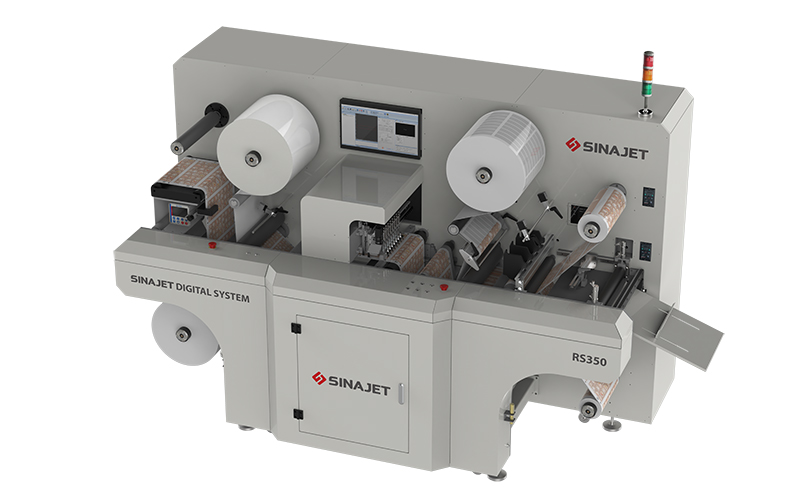

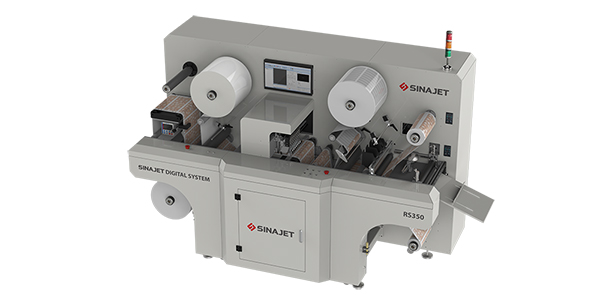

Label Die Cutting Machine
The digital label die cutting machine is a professional solution designed for the digital label market. It features fully automated feeding, web alignment, position registration, head switching, and job changing, delivering a new level of automation and ease of use.
With a high cutting speed of up to 12 meters per minute, the RS35 offers fast and efficient digital die-cutting performance. Its simple operation, wide material compatibility, and multiple finishing options including automatic slitting, sheet cutting, and rewinding, making it easy to complete orders with confidence and productivity.
Technical Parameters
| Model | ||
| Max. web diameter | 500mm | 500mm |
| Web roll width | 100-350mm | 100-350mm |
| Max. cutting length | 800mm | 800mm |
| Tension web system | Yes | Yes |
| Max. Cutting speed | 12m/min | 12m/min |
| Max. Die-cutting heads | 8 independent heads | 8 independent heads |
| Tool depth control mode | Single motor + 8 cylinders | 8 independent motors |
| Auto distance cutting head | Yes | Yes |
| Web guide correction | Ultrasonic | Ultrasonic |
| Cutting accuracy | 0.1mm | 0.1mm |
| Marker readers | Yes - CCD | Yes - CCD |
| QR code reader | Yes | Yes |
| Lamination | Yes | Yes |
| Waste removal | Yes | Yes |
| Label counting | Yes, in-line sensor | Yes, in-line sensor |
| Output slitter units | 9 units | 9 units |
| Output web roll | Up & down rewinder | Up & down rewinder |
| Output sheet-to-sheet | 1 paper stack | 1 paper stack |
| Safety | 2 stoppers (light curtain: optional) | 2 stoppers (light curtain: optional) |
| Panel control | LCD panels | LCD panels |
| Interface | LAN | LAN |
| Software | Sinajet control software | Sinajet control software |
| Data exchange | Main data stored in PC folder (PC not included) | Main data in PC folder (PC not included) |
| Air compressor | Yes, optional | Yes, optional |
| Power supply | 220V/50Hz, 2.8kW | 220V/5 Hz, 2.8kW |
| Net dimensions | 2900*1350*1570mm | 2900*1350*1570mm |
| Net weight | 1000kg | 1000kg |
| Working environment | Temperature 0-40℃, humidity 20%-80% (no condensation) | Temperature 0-40C, humidity 20%-80% (no condensation) |
| Others | Auto-feed thickness may vary depending on material quality, rigidity, roughness, and lamination. Cutting quality depends on different cutting files. | |
