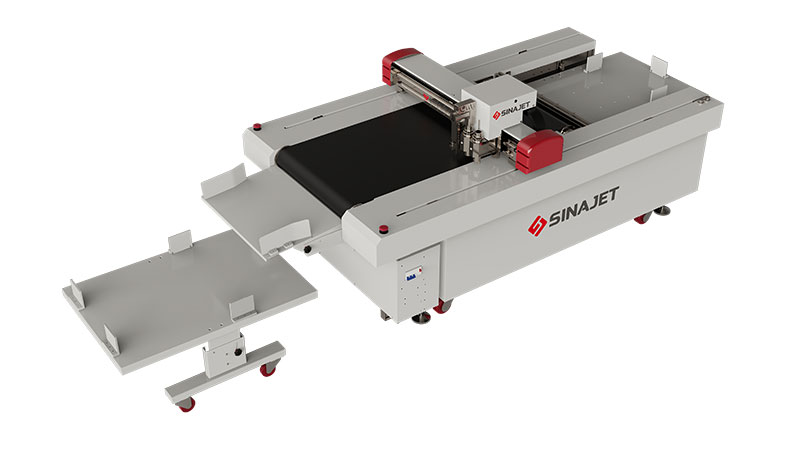

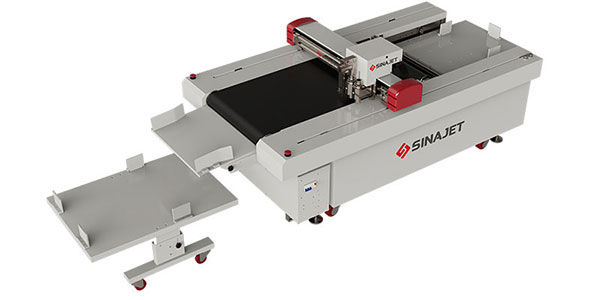

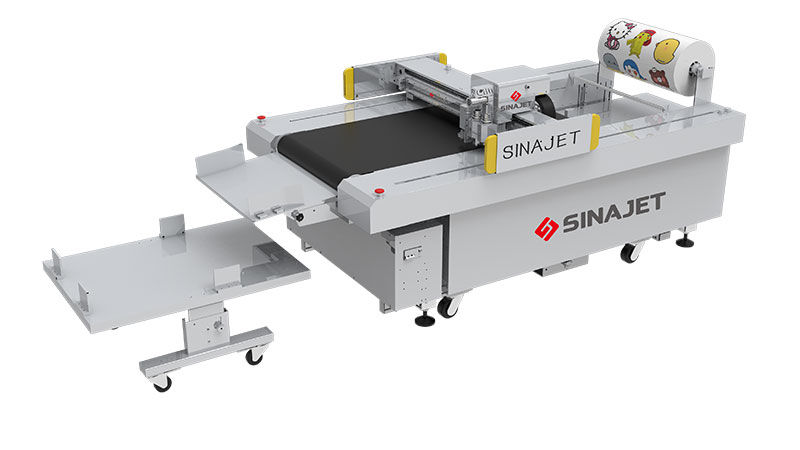

Digital Cutting Table

  • DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
  • DG Series Digital Flatbed Cutter (Applied for Sign, Advertising and Packaging Industry)
  • AcrylicAcrylic
  • Aluminum CompositeAluminum Composite
  • POP Display Recycle BoardPOP Display Recycle Board
  • PVC Sheet ForexPVC Sheet Forex
  • Gasket MaterialsGasket Materials
  • Textiles Banners FabricTextiles Banners Fabric
    1. 3-Layer Corrugated Sheet Cutting
    2. 3-Layer Corrugated Sheet Cutting
    1. Felt Panel Cutting
    2. Felt Panel Cutting
    1. Paper Box Cutting
    2. Paper Box Cutting
    1. 1cm Acrylic Cutting
    2. 1cm Acrylic Cutting
    1. Banner Material Cutting
    2. Banner Material Cutting
    1. PP Paper Cutting
    2. PP Paper Cutting
    1. Card Paper Cutting
    2. Card Paper Cutting
    1. Aluminum Composite Panel Cutting
    2. Aluminum Composite Panel Cutting
    1. KT Board Cutting
    2. KT Board Cutting
Options

There are two models available to meet different needs. Those models vary from the cutting area (L*W). Customized machine model can be offered upon request.

DF0604 DF0604 : 600*400mm
  • Tools: cutting knife, CCD, plotting pen, creasing wheel
  • Cutting thickness: ≤2mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DF0906 DF0906 : 900*600mm
  • Tools: cutting knife, CCD, plotting pen, creasing wheel
  • Cutting thickness: ≤2mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
Options (MT Series)
DF0604-MT DF0604-MT : 600*400mm
  • Tools: drag knife, CCD, kiss cutting tool, creasing wheel, cutting knife, plotting pen (oscillating knife and rotary knife are optional)
  • Cutting thickness: ≤10mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker, expanded PVC, foam board, ABS board, grey paper board, corrugated cardboard, and various reflective materials
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DF0906-MT DF0906-MT : 900*600mm
  • Tools: drag knife, CCD, kiss cutting tool, creasing wheel, cutting knife, plotting pen (oscillating knife and rotary knife are optional)
  • Cutting thickness: ≤10mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker, expanded PVC, foam board, ABS board, grey paper board, corrugated cardboard, and various reflective materials
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DF1007-MT DF1007-MT : 1000*700mm
  • Tools: drag knife, CCD, kiss cutting tool, creasing wheel, cutting knife, plotting pen (oscillating knife and rotary knife are optional)
  • Cutting thickness: ≤10mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker, expanded PVC, foam board, ABS board, grey paper board, corrugated cardboard, and various reflective materials
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

Related Products
Other Products
Inquiry
Available Tools
  • Electric Oscillating Tool (8mm stroke), EOT8 Electric Oscillating Tool (8mm stroke), EOT8
  • Electric Oscillating Tool (2.5mm stroke), EOT2.5 Electric Oscillating Tool (2.5mm stroke), EOT2.5
  • Electric Oscillating Tool (1mm stroke), EOT1 Electric Oscillating Tool (1mm stroke), EOT1
  • Wheel Knife Tool, WKT Wheel Knife Tool, WKT
  • Passive Wheel Knife Tool, UWKT Passive Wheel Knife Tool, UWKT
  • Drag Tool, DCT Drag Tool, DCT
  • V-Cut Tool, VCT V-Cut Tool, VCT
  • Kiss-Cut Tool, KCT Kiss-Cut Tool, KCT
  • Creasing Tool, CTT Creasing Tool, CTT
  • Driven Rotary Tool, RCT Driven Rotary Tool, RCT
