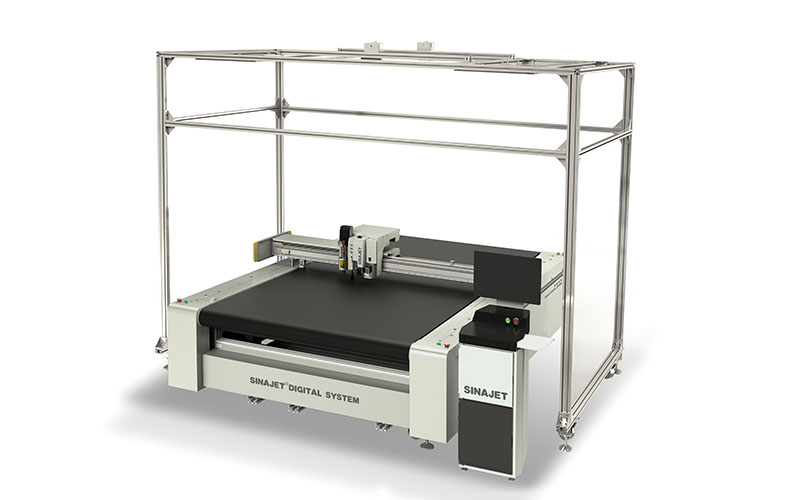

Digital Cutter for Upholstered Furniture

Home
Cutting Systems
Digital Cutter for Upholstered Furniture

Digital Cutter for Upholstered Furniture

Modular combination of cutting knives:
high speed rotary knife, high speed oscillating knife;
Anti-collision device infrared light curtain:
protecting operator from being injured;
Advanced software:
independently developed by Sinajet, providing users with intelligent operation experience while fulfilling their various cutting demands;
Exclusive material hold-down technology:
low noise level and reduced energy consumption;

Options

There are three models available to meet different needs. Those models vary from the cutting area (L*W). Customized machine model can be offered upon request.

DG2516 : 2500*1600mm

Working table: fixed table and conveyor table are optional
Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, oscillating knife, V-cutting tool, drilling tool
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: imported intelligent digital servo drive
Pump power: 2.2-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

DG2518 : 2500*1800mm

Working table: fixed table and conveyor table are optional
Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, oscillating knife, V-cutting tool, drilling tool
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: imported intelligent digital servo drive
Pump power: 2.2-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

DG2521 : 2500*2100mm

Working table: fixed table and conveyor table are optional
Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, oscillating knife, V-cutting tool, drilling tool
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: imported intelligent digital servo drive
Pump power: 2.2-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

Sinajet offers intelligent cutting solution for manufacturers in the field of upholstered furniture. Whether you work in custom manufacturing or mass production, you can rely on our precise cutting machines to get your job done in a quick and efficient manner, regardless of the material is textiles or leather.

Applications

Carpet
Sinajet cutting system is particularly designed to solve the issues of rough surface and low material utilization in carpet cutting process.
Home furnishing
Sinajet offers high efficiency cutting solution for home furnishing materials, assisting customers in saving materials while improving production efficiency. Sinajet cutting machines are suitable for cutting household items such as carpets, sofas, couches, cushions, curtains, etc.
Sinajet cutting systems are also suitable for cutting car floor mats, seat cushions, seat covers and other auto upholstery supplies of various materials.
