Digital Cutter for Textile/Garment Industry

Digital Cutter for Textile/Garment Industry

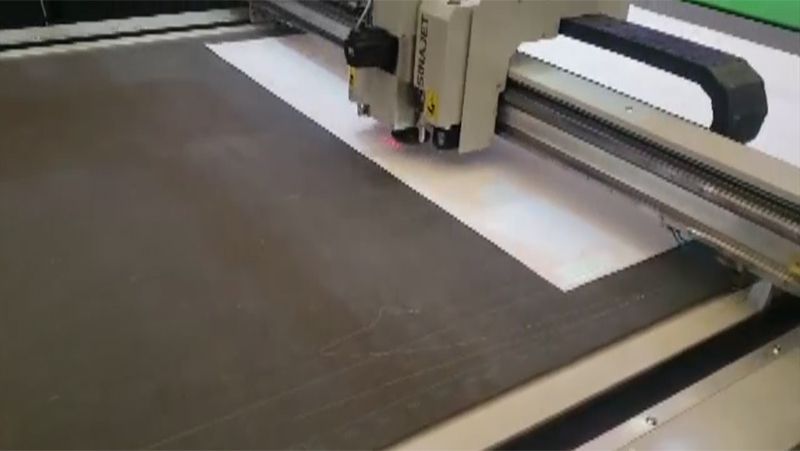

2. 3m Fabric Cutting with Auto Feeding
2. 30-Layer Lining Cutting

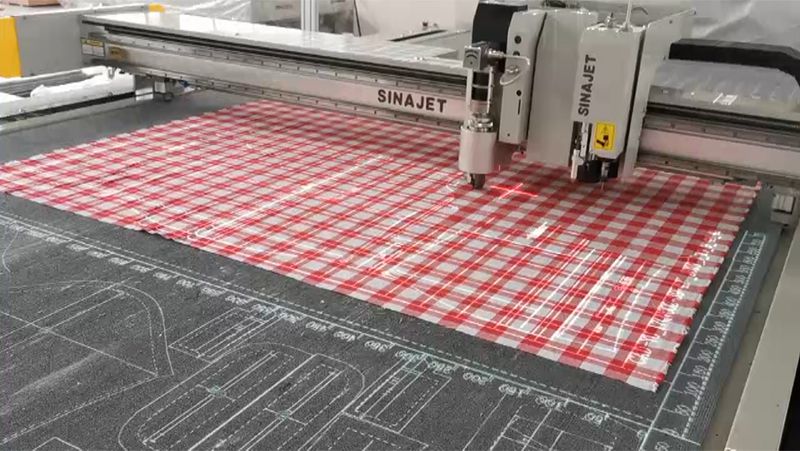

2. Digital Cutting with Camera Scanning

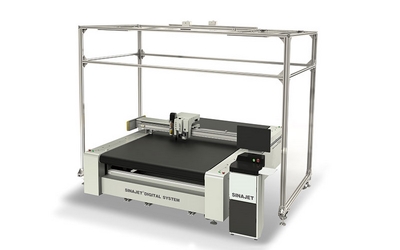

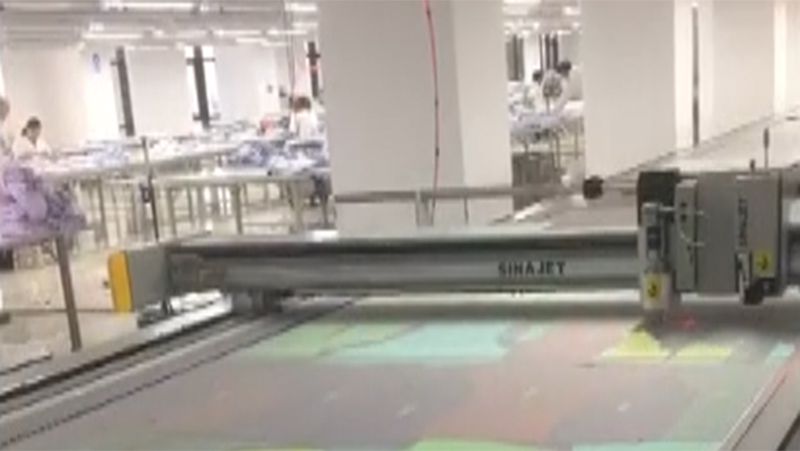

2. Digital Cutting with Video Projection System
2. Shirts Cutting with Video Projection System

Modular combination of cutting knives:
high speed rotary knife, notching tool, drilling tool and more cutting tools to meet a number of apparel fabric cutting application needs;
Advanced software:
it can satisfy your individual production demands;
Inkjet tool/plotting pen:
it is used in cutting operations where cut parts need to be marked;
Various custom-specific requirements are acceptable
Applications:
made to measure (MTM) custom clothing, sample cutting, small batch garment manufacturing

Options

There are six models available to meet different needs. Those models vary from the cutting area (L*W). Customized machine model can be offered upon request.

DG2516L20 : 2500*1600mm

Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, notching tool, drilling tool, punching tool and more knives are optional
Marking modules: Inkjet tool and plotting pen are optional
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF/AI/PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: intelligent digital servo drive
Pump power: 5.5-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

DG2518L20 : 2500*1800mm

Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, notching tool, drilling tool, punching tool and more knives are optional
Marking modules: Inkjet tool and plotting pen are optional
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF/AI/PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: intelligent digital servo drive
Pump power: 5.5-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

DG3016L30 : 3000*1600mm

Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, notching tool, drilling tool, punching tool and more knives are optional
Marking modules: Inkjet tool and plotting pen are optional
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF/AI/PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: intelligent digital servo drive
Pump power: 5.5-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

DG6516 : 6500*1600mm

Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, notching tool, drilling tool, punching tool and more knives are optional
Marking modules: Inkjet tool and plotting pen are optional
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF/AI/PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: intelligent digital servo drive
Pump power: 5.5-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

DG6009 : 6000*900mm

Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, notching tool, drilling tool, punching tool and more knives are optional
Marking modules: Inkjet tool and plotting pen are optional
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF/AI/PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: intelligent digital servo drive
Pump power: 5.5-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

DG12009 : 12000*900mm

Repeatability: ≤0.1mm
Max. cutting thickness: 25mm
Max. cutting speed: 1500mm/s
Cutting tools: rotary knife, notching tool, drilling tool, punching tool and more knives are optional
Marking modules: Inkjet tool and plotting pen are optional
Material hold-down: vacuum clamping
File format: DXF/ HPGL/ CUT/ GBR/ PLT/ ISO/ PDF/AI/PDF
Interface: network interface
Voltage: 220V/380V/50-60HZ
Drive system: intelligent digital servo drive
Pump power: 5.5-9.0KW
Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

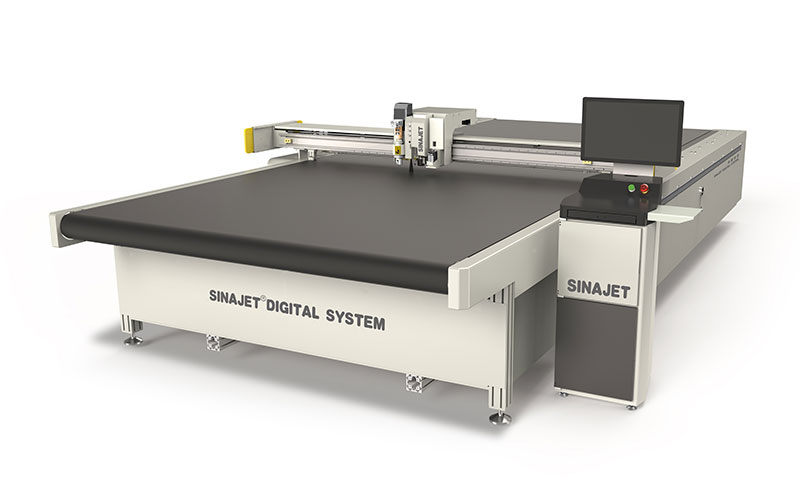

Sinajet offers custom-manufactured digital cutting systems for the field of garment and apparel manufacturing, they are suitable for cutting various woven and knitted fabrics to make suits, shirts, dresses, and much more types of apparels. High resolution vision camera system is equipped for precise locating and contour cutting of stripes, plaids and different patterns in a fast manner. Besides, our digital cutters are offered with user-friendly operating system, creating a perfect platform for your clothing manufacturing.

Features

Automatic Nesting
It achieves fully automatic nesting on textile while matching to stripes and plaids, with the highest utilization of material. This provides the best possible cutting layout and gets jobs into production faster and more precise.

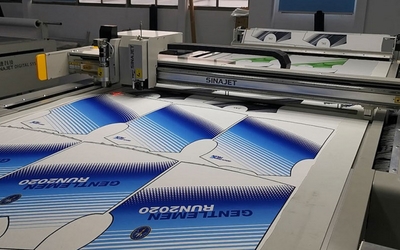

Vision Scan Contour Cutting
The vision system recognizes contour marks printed on various materials, and then the precise cutting is automatically implemented. The entire process eliminates the need for manual cutting where paper pattern is required.

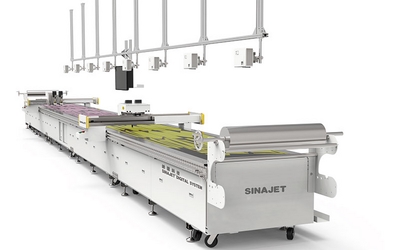

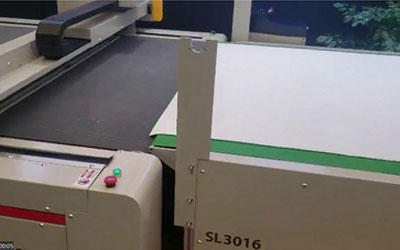

Conveyor Table and Off-load Table (integrated)
It allows operator to collect cut piece while the machine is continuously working, improving cutting efficiency.

Automatic Layout and Cutting for Horizontal Striped T-shirt
The vision system automatically recognizes horizontal stripes to achieve automatic layout and cutting, eliminating the need for manual operation during the entire process.
Innovative Cutting for Knitted T-shirt
It enables the operations from fabric feeding, cutting to cut piece collection to be completed in an efficient manner, which requires only one person to operate. It is a perfect way solving the elastic deformation of knitted fabric.

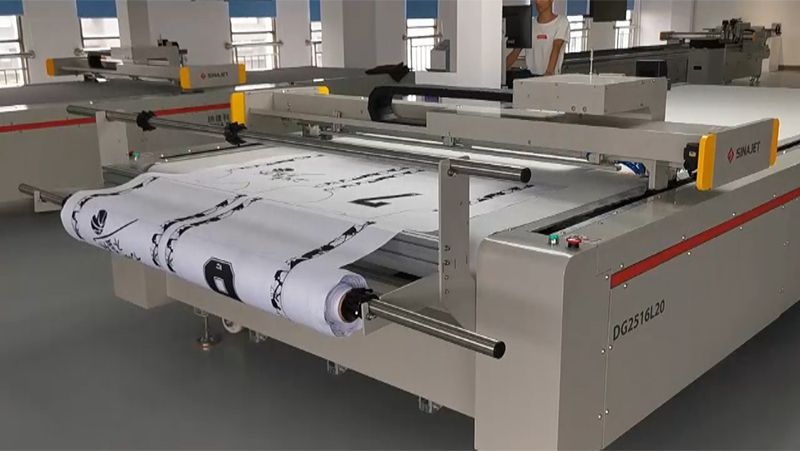

Simultaneous Feeding and Cutting
This provides unmanned operation through automatic fabric feeding and cutting, ensuring high efficiency for uniforms and clothing manufacturing.

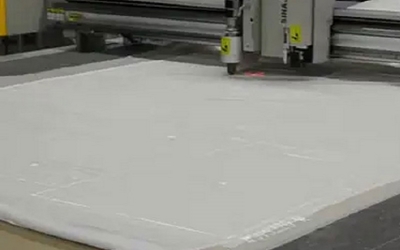

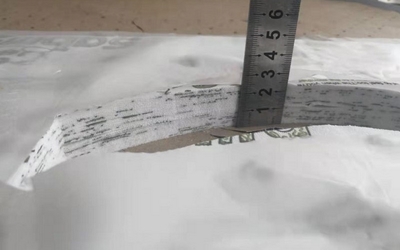

2.0cm High Accuracy Cutting
It satisfies the needs of multi-layer cutting for small batch production.

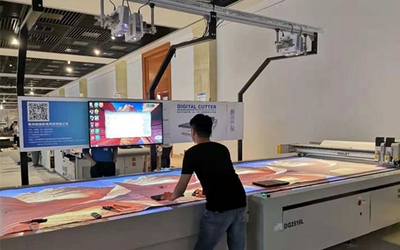

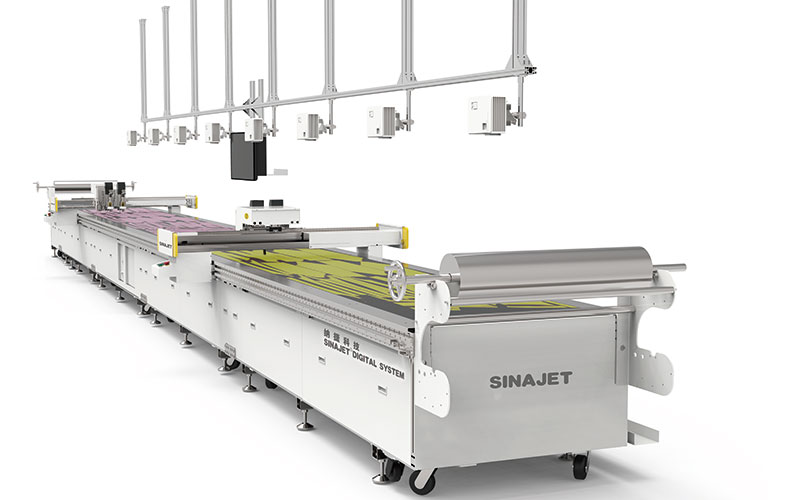

Projection System for Precise Cutting
Projection system for cut path alignment can efficiently replace the conventional manual cutting method that requires paper patterns.

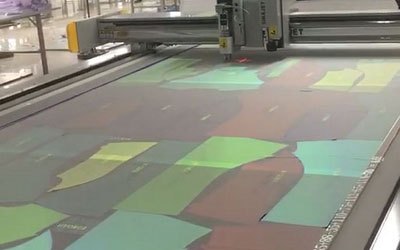

Dynamic Projection with Various Colors
Objects are projected with various colors, providing effective sorting of cut pieces. It allows operator to better recognize the material to be cut, preventing cutting errors.

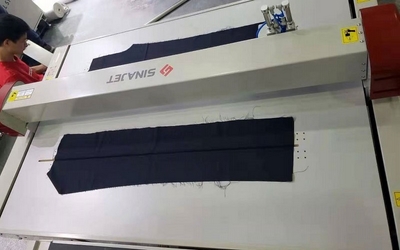

Glue Dispensing
Automatic glue dispensing is used for the seam line of trouser, eliminating the need for manual operation.
