Modules for Digital Cutting System

Sinajet is specialized in the manufacturing of digital cutting systems, providing a range of modules to meet diverse cutting requirements. Our offerings include the universal module, punch module, marker module, and router module, each designed for specific cutting applications.

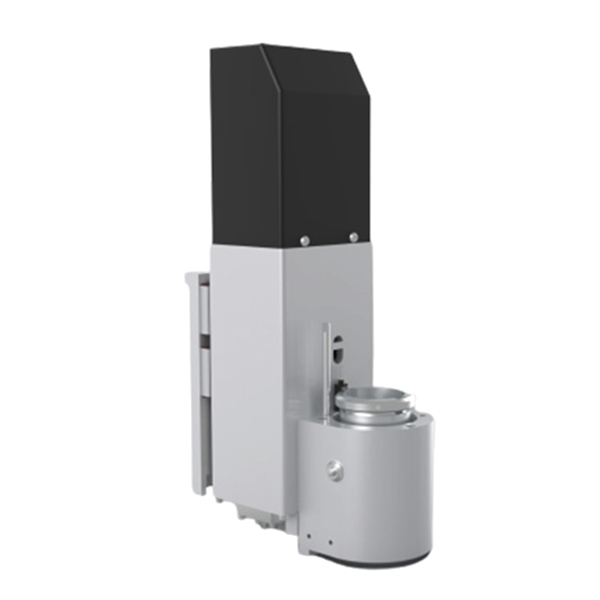

Universal Module

Universal Module

Universal module allows for easy changeover of various tools, such as 1mm oscillating tool, 2.5mm oscillating tool, wheel knife tool, kiss-cut tool, creasing tool, perforating tool, V-cut tool, and pneumatic oscillating tool. This versatility enables it to meet the cutting needs of different materials.

Features
Easy and quick changeover of various tools

Specifications

  • Max. load: 53.4kg
  • Max. lifting/lowering speed: 200mm/s
  • Max. acceleration: 106.8m/s²
  • Max. rotation angular speed: 87.2rad/s
  • Max. rotation angular acceleration: 2.32rad/s
  • Max. torque: 1188Nmm
  • Max. stroke: 51mm
Request a Quote

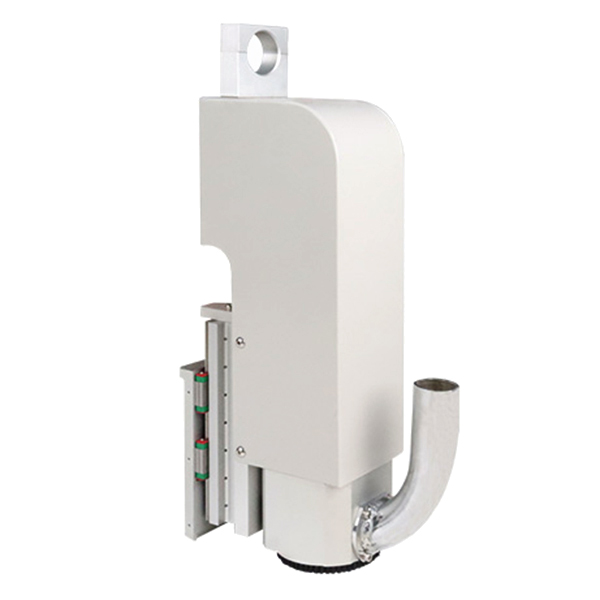

Punch Module

Punch Module

Punch module is commonly used for perforating different materials and can be equipped with tools for notching, drilling, and punching to produce holes of different sizes.

Features

  • Capable of handling various types of notches, such as straight notches, V-notches, T-shaped notches, etc.
  • Offers a selection of different hole sizes.
  • Non-overcut cutting
  • Suitable for a wide range of materials, like textiles, paper, film, leather, etc.
  • Precise processing, delivering excellent results.

Specifications

  • Max. load: 48.2kg
  • Max. lifting/lowering speed: 800m/s
  • Max. rotation angular speed: 157rad/s
  • Max. rotation angular acceleration: 1778.9rad/s²
  • Max. torque: 636Nmm
  • Max. stroke: 50mm
  • Max. punching frequency: 5times/s
Request a Quote

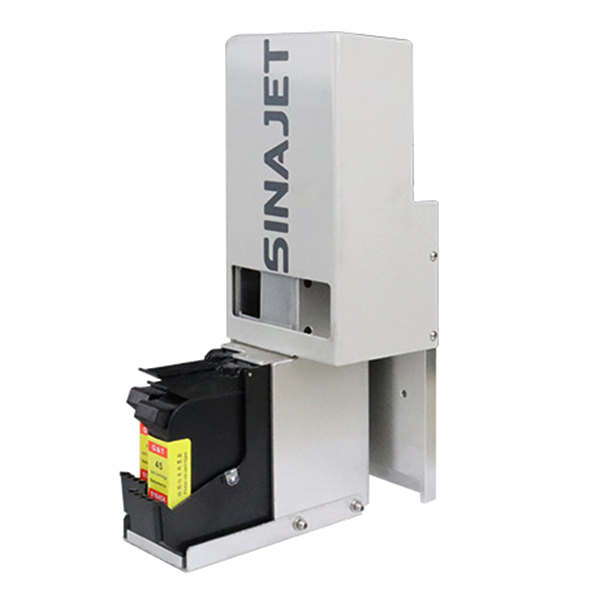

Marker Module

Marker Module

Marker module can accommodate various types of pens and ink inserts, allowing for HP45 inkjet marking, marker pen marking, or inkjet pen marking.

Features

  • Different marking methods are available based on specific requirements for different materials.
  • Low consumable cost
  • Strong practicality

Specifications

  • Max. lifting/lowering speed: 800m/s
  • Max. stroke: 50mm
Request a Quote

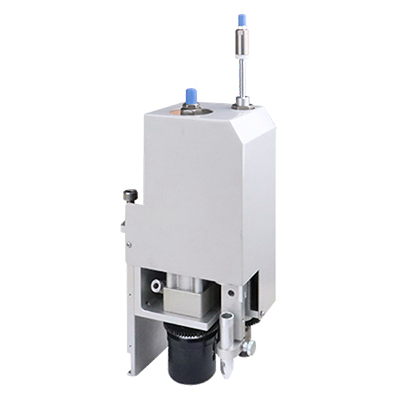

Router Module

Router Module

Router module can be equipped with an air-cooled or water-cooled spindle motor to complete milling and cutting processes such as slotting and hollowing.

Features

  • Optional air-cooled and water-cooled high-speed motors.
  • Powerful dust and chip removal
  • Various power options available
  • Suitable for milling and polishing of acrylic sheets, PVC sheets, aluminum-plastic panels, wood panels, etc.

Specifications

  • Max. load: 56.9kg
  • Max. lifting/lowering speed: 200mm/s
  • Max. acceleration: 66.9m/s²
  • Max. stroke: 60mm
Request a Quote
