Flatbed Cutter

Flatbed Cutter
  • AcrylicAcrylic
  • Aluminum CompositeAluminum Composite
  • POP Display Recycle BoardPOP Display Recycle Board
  • PVC Sheet ForexPVC Sheet Forex
  • Gasket MaterialsGasket Materials
  • Textiles Banners FabricTextiles Banners Fabric
    1. 3-Layer Corrugated Sheet Cutting
    2. 3-Layer Corrugated Sheet Cutting
    1. Felt Panel Cutting
    2. Felt Panel Cutting
    1. Paper Box Cutting
    2. Paper Box Cutting
    1. 1cm Acrylic Cutting
    2. 1cm Acrylic Cutting
    1. Banner Material Cutting
    2. Banner Material Cutting
    1. PP Paper Cutting
    2. PP Paper Cutting
    1. Card Paper Cutting
    2. Card Paper Cutting
    1. Aluminum Composite Panel Cutting
    2. Aluminum Composite Panel Cutting
    1. KT Board Cutting
    2. KT Board Cutting

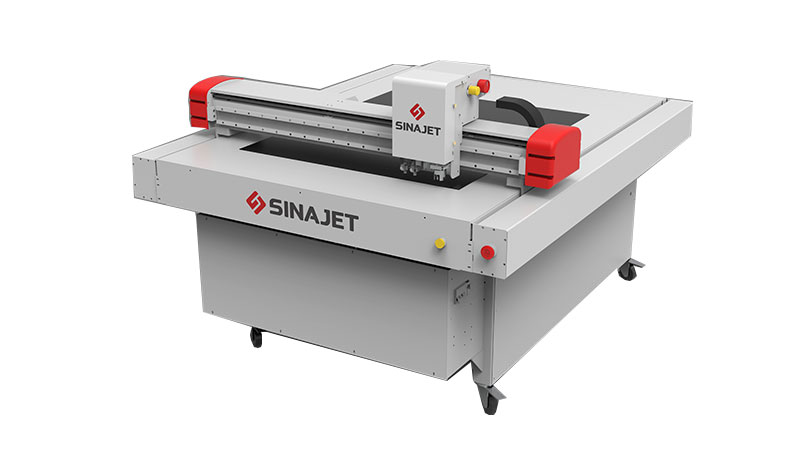

  • Model: FG1008-B
  • Fast cutting, high accuracy, supporting through-cutting and half-cutting;
  • Easy-to-use control software, customizable to meet customer’s cutting needs;
  • Exclusive material hold-down technology, strong holding force, low noise level and reduced energy consumption;
  • Intelligent, humanized, digital cutting;
Specifications
  • Max. cutting area: 1000*800mm
  • Tools: rotary cutting knife, CCD, plotting pen, creasing wheel
  • Data reading: barcode or QR code reading
  • Working table: fixed table
  • Max. cutting speed: 1000mm/s
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker, etc.
  • Cutting thickness: ≤2mm (depending on material to be cut)
  • Repeatability: ≤0.1mm
  • Interface: LAN
  • format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Voltage: 220V
  • Pump power: 2.2KW
  • Machine dimension: 1753*1434*1135mm
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)

Related Products
Other Products
Inquiry
Available Tools
  • Electric Oscillating Tool (8mm stroke), EOT8 Electric Oscillating Tool (8mm stroke), EOT8
  • Electric Oscillating Tool (2.5mm stroke), EOT2.5 Electric Oscillating Tool (2.5mm stroke), EOT2.5
  • Electric Oscillating Tool (1mm stroke), EOT1 Electric Oscillating Tool (1mm stroke), EOT1
  • Wheel Knife Tool, WKT Wheel Knife Tool, WKT
  • Passive Wheel Knife Tool, UWKT Passive Wheel Knife Tool, UWKT
  • Drag Tool, DCT Drag Tool, DCT
  • V-Cut Tool, VCT V-Cut Tool, VCT
  • Kiss-Cut Tool, KCT Kiss-Cut Tool, KCT
  • Creasing Tool, CTT Creasing Tool, CTT
  • Driven Rotary Tool, RCT Driven Rotary Tool, RCT
