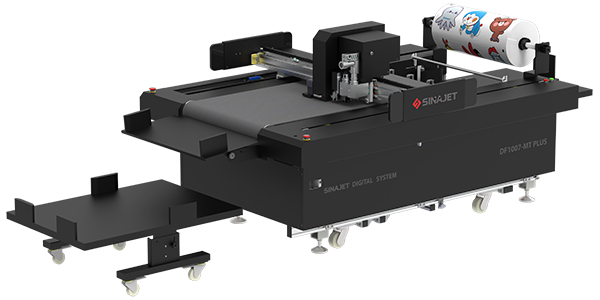

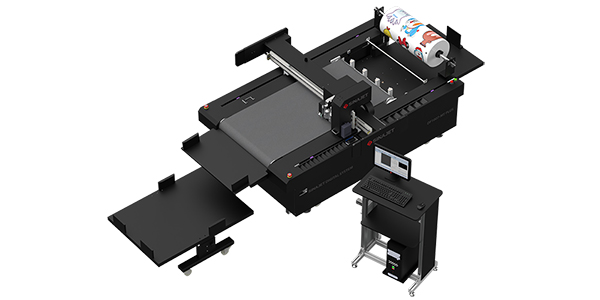

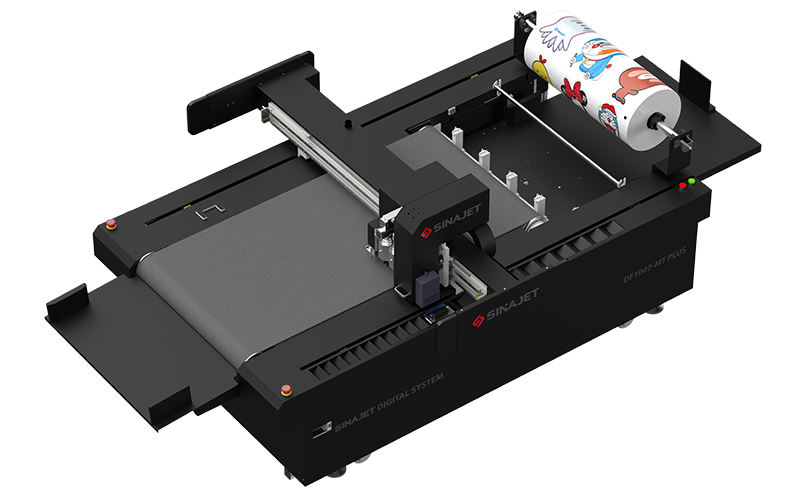

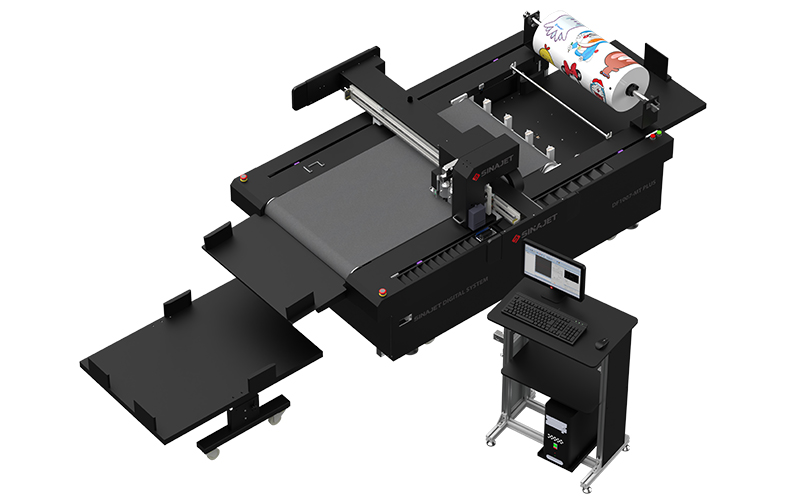

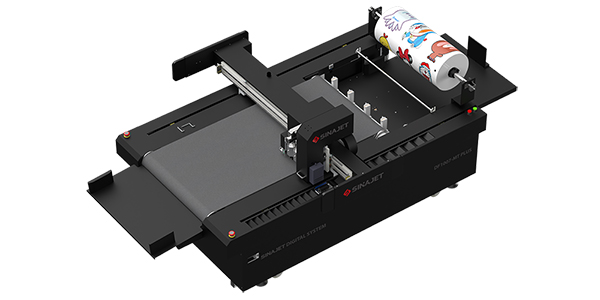

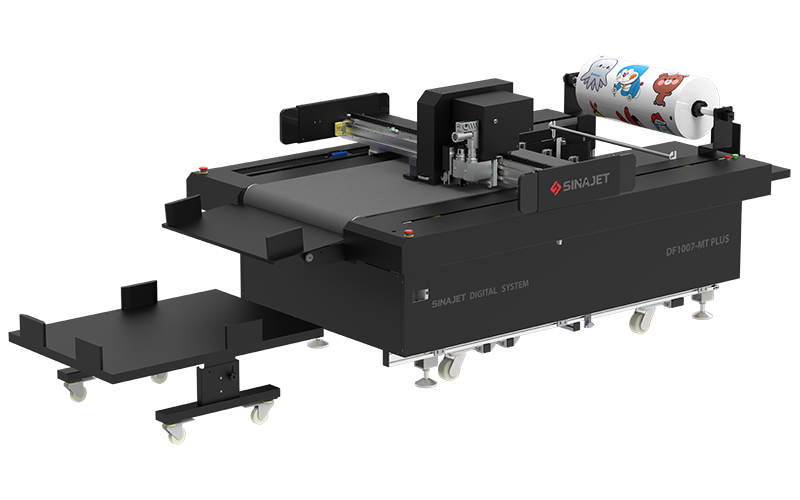

Digital cutter with UV spot varnishing is designed to meet the small-batch, multi-layout production needs of the printing and packaging industry. It enables fully automated handling of both roll and sheet materials - including feeding, UV spot varnishing, cutting, and collecting - without any operator intervention. With a single operation, the printing and cutting system significantly enhances the customization and added value of standard products, delivering higher efficiency and improved production output.

  • Digital Cutter with UV Spot Varnishing
  • Digital Cutter with UV Spot Varnishing
Technical Parameters
Model DF1007-MT plus (integrated with UV spot varnishing function)
Active cutting and printing size (L*W) 1000*700mm
Machine size (L*W*H) 4000*1745mm*1260mm
Mechanical transmission system Rack and pinion
Cutting tools Drag knife, crease wheel, RCT, PRCT, TCC
Optional cutting tools Oscillating knife, active circular knife, V cut, kiss-cut
Positioning method CCD imaging
Printing heads Industrial print head (Ricoh G5)
Max. Cutting thickness ≦10mm (varies by material)
Varnishing thickness 0.1-0.8mm
DPI resolution 600dpi x 600dpi
Ink supply system Automatic ink supply system
Negative pressure system Automatic negative pressure regulation
Print head maintenance method Automatic cleaning
Ink type Flexible UV Ink
Curing method LED UV light curing
Material feeding method Conveyor
Material adsorption method Vacuum adsorption
Max. printing speed 1000mm/s
Max. cutting speed 1400mm/s
Cutting/printing repeated accuracy ±0.1mm
Cutting file format DXF, HPGL, CUT, ISO, PLT, PDF, XML, AI
Printing file format BMP
Data transmission method LAN
Cutter voltage AC 220V, 50-60Hz
Cutter power 2.45kW
Printing system power 650W
Vacuum power 2.2kW
Air compressor power 1.0kW
